Dam Pipe Transporter Semi-Trailers

CUSTOM-MADE SEMTRAILERS

Oversize Pipe Transporter Semi-Trailer:

AKYEL Custom-Made Semi-Trailers are built tough enough for the real world. We can build the perfect trailer for your individual business needs. Not only do we pride ourselves on meeting the individual needs of each customer we interact with, we provide excellence in quality of design, workmanship, and our commitment to providing you the exact heavy equipment trailer you need to transport your valuable equipment. Our Custom-Made Trailers can solve your most basic and advanced hauling needs. Mobile oversize pipe transporter.

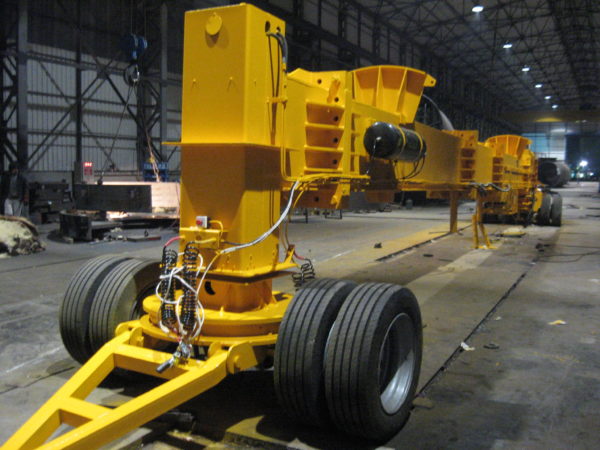

DAM PIPE TRANSPORT & INSTALL SEMI-TRAILER
This special design pipe transporter & installer was requested from the local government in the use of a construction of a dam. It enabled the transport of the oversized pipes and would keep the pipes in position until they were fully secured.

Kategoriler:
FacebookLinkedinWhatsappEmail

Açıklama

CHASSIS:

Made of high tensile stell (I cut).

AXLE And SUSPENSION:

Drum and disk brakes, liftable front axle, 3×12 ton axles with air suspension..

TYRES:

385/65 R 22.5 Tubeless tires with 11.75 R 22.5 rims

BRAKES SYSTEM:

Mobile Oversize Pipe Transpoter

EBS 2S-2M, dual circuit pneumatic brake system according to EC

BODY:

Side covers 2 mm, Ventilation covers, Floor lifting system is hydraulic, Hydraulic rear cover system, Roof lifting is hydraulic, Feeder, water tank, fan system (TYPE2 optional)

FLOOR:

The floors are non-slip and special rubber on the sheet

LANDING GEAR:

25 ton mechanical landing gear.

ELECTRICAL SYSTEM:

7×2 pin sockets electrical system.

PAINT:

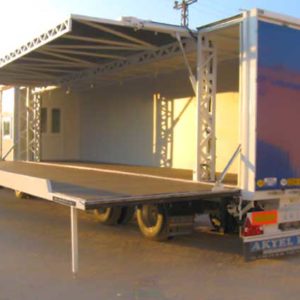

Coats of epoxy lining then coats of acrylic colour..                              Mobile Stage

STANDARTS ACCESSORIES:

Side and rear underrun protection, spare whell carrier (1 unit), toolbox (1 unit), food box (1 unit), water tank (1 unit), wheel shock (1 unit), axle key (1 unit).

OPTIONS:

Double stepne carrier, imported axle, disc brake.
